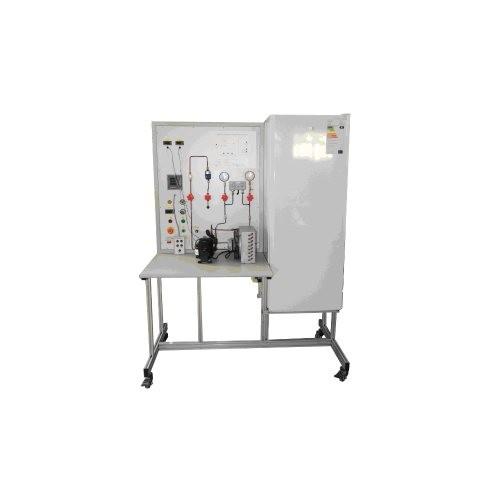

ZM6165 Domestic Freezer/Training Model
I Introduction
The trainer is properly designed for educational aims and studies
the refrigeration at negative temperature it includes all the parts
of an industrial refrigeration system, including a properly
insulated freezing room with defrost of the garnish of the door and
an electronic controller with automatic defrost of the evaporator
an electric heater simulates the variations of temperature inside
the room.
Single phase, three wires, 220-240V,50Hz
2 instaled doors and multi box system shelves
Total capacity 250-300 lt
Single door
To be supplied compelete with all necessaries
Aluminum( which is better than steel), corrosion resistant outer
casting stand
Simulator with 10 faults and 10 test point(with 10 electrical
faults, evap.cond. ,thermalstat evap.fan, cond.fan, H&L
pressure switch, sensor etc.)
II Training Program
Plant starting and verification of the safety devices intervention
Study of the operation and set up of a thermostatic expansion valve
On-off control
Analysis of the system behavior at variation of:
- Thermostatic valves superheat
- Condenser air flow
Drawing the cycle in the pressure - enthalpy diagram of the
refrigerant gas
Data collection and calculation of:
- Thermal balances at evaporator, condenser compressor
Supplied with:
General Refrigeration Manual
Experimental Handbook
Product Details and Warranty
We supply suitable spare pats according to experiment requirement,
our products take aluminum structure, A4 paper dimension aluminum
and plastic hanging box structure.
We supply 3 years warranty time.
Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with
pallet, and for equipment dimension less than 1CBM, we supply
plastic film+ plastic foam+ fine carton.
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
