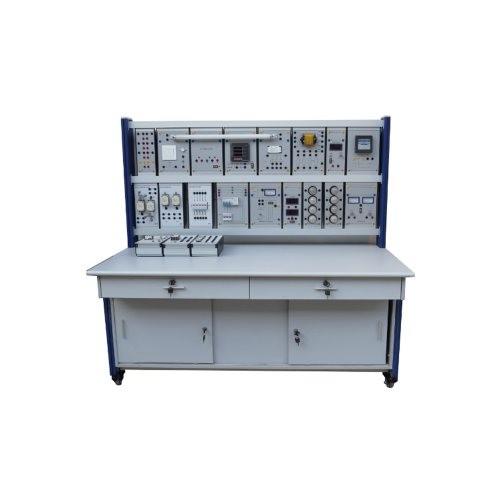

ZE3301B Electrical Trainer Board
Brand : ShouldShine
Model : ZE3301
Country of Origin : China
Country of Manufacturer : China
Technical parameter
1. Dimension: About 1770mm × 640mm × 1580mm
2. Working power: three-phase four wire (or three-phase five
wire)~380V±10% 50Hz; <1.5KVA
3. Working temperature: -10°C~40°C, relative humidity<85%(25°C),
altitude<4000m
4. Action current leakage protection: ≤30mA
5. The action time of leakage protection: ≤0.1s
Product composition
No. | Item | QTY |
1 | Training platform | 1 set |
2 | Training panel | 1 set |
3 | Hanging box module | 3 sets |
4 | Supporting cable | 1 set |
5 | Supporting electrical components | 1 set |
Basic experiments
1. Single-phase start-stop control circuit
2. Jog asynchronous motor control circuit
3. Two asynchronous motor control circuit
4. Asynchronous motor reversing control interlock circuit
5. Double interlock control circuit
6. Automatic sequence control circuit
7. Manual sequential start
8. Asynchronous motor star, triangle control circuit
9. Asynchronous motor braking control circuit
10. Three-phase asynchronous motor reversing control button
interlock circuit
11. Reversing control circuit of three-phase asynchronous motor
button interlock circuit
12. Positive inversion control circuit of three-phase asynchronous
motor double interlocking
13. Unidirectional reduced voltage starting and braking control
circuit
14. Asynchronous motor braking control circuit
15. Automatic reciprocating circuit
16. Reversible jog, startup control circuit
17. The automatic control circuit with slightly moving
18. The self-locking circuit of asynchronous motor
19. Single-phase asynchronous motor jog, startup control circuit
20. The stator of three-phase asynchronous motor series resistance
reduced voltage starting manual control circuit
21. The stator of three-phase asynchronous motor series resistance
reduced voltage starting automatic control circuit
22. Contactor control two-speed motor control circuit
23. The control circuit of time relay to control the double speed
motor
Product Details and Warranty
We supply suitable spare pats according to experiment requirement,
our products take aluminum structure, A4 paper dimension aluminum
and plastic hanging box structure.
We supply 3 years warranty time.
Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with
pallet, and for equipment dimension less than 1CBM, we supply
plastic film+ plastic foam+ fine carton.
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
Training Room Photo
Company Information
We supply professional educational training equipment and technical
teaching equipment, which has been widely applied in Engineering
Universities, Polytechnics, Technical Institute, Vocational Schools
as well as Industry workforce Development Programs and Training
Center. Our products allow students to learn and experiment through
valuable hands-on experience, and the technology covered by our
training equipment provides knowledge, experiments and didactic
skills development that are of critical importance to today´s and
tomorrow´s careers.
Photo for Clients Visiting Factory
Service
We supply supply7*24 hours service, customer design service, OEM
service, buyer label service. With professional engineers team and
sales team, we assure you good product quality.
Certificate
Our products takes ISO9001 product management system.
| No. | Feature Name | Details |
| 1 | Customer design | Yes |
| 2 | Warranty | 1 year, 2 years, 3 years or 5 years according to client
requirements |
| 3 | Package | Plastic film+ carton+ Fine plywood |
| 4 | Products standard | International didactic equipment standard |
| 5 | Application range | Educational equipment for university, college, vocational training
centers |
| 6 | Company philosophy | Supply best quality Chinese products to the worldwide schools. |
| 7 | Self owned brand | Shouldshine, SSEDU, JSS. |
| 8 | Production time | From 10 days to 60 days according to different items |
