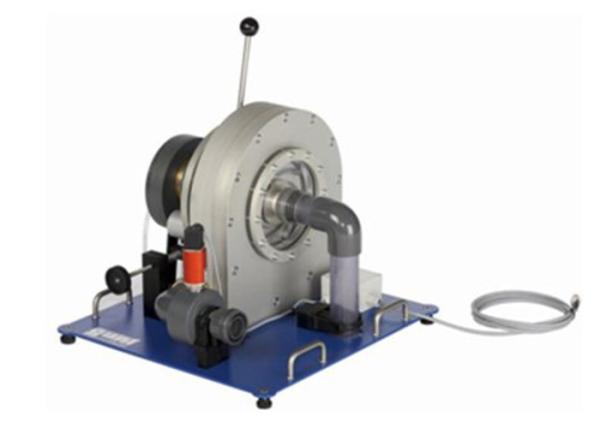

ZM7144 Francis Turbine

• recording the curves of a Francis turbine and investigating the influence of the guide vane position
• transparent front panel for observing the operating area
• loading the turbine by use of the band brake
• adjustable guide vanes for setting different angles of attack
• recording the torque via band brake and force sensor
• force sensor at the turbine inlet
• speed, torque and pressure displayed on the switch cabinet of Characteristic Variables of Hydraulic Turbomachines

• Technical Data

  Turbine

  - output: approx. 350W at 1500min-1, 270L/min,

  H=15m

  - max. speed: 3000min-1

  - rotor

  11 vanes

  medium diameter: 60mm

  - control wheel

  7 vanes

  angle of attack: 0...20°




  Measuring ranges

  - torque: 0...9,81Nm

  - pressure: 0...4bar abs.

  - speed: 0...3000min-1

  Dimensions and Weight

  LxWxH: 510x490x410mm

  Weight: approx. 38kg

Product Details and Warranty
We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.


Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.
