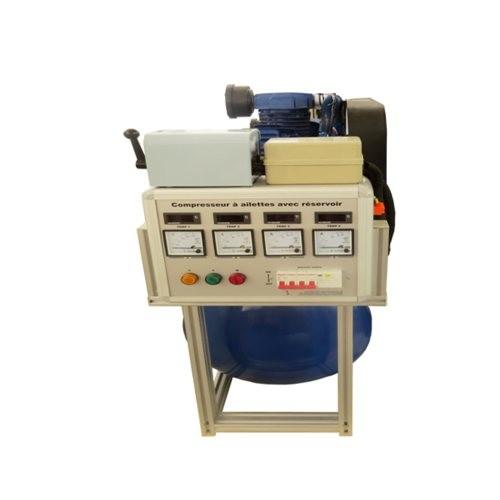

ZE2005 Air Compressor Trainer Didactic Equipment Vocational
Training Equipment
1. Product overview
An air compressor is a device used to compress gas. Piston
compressor-is a positive displacement compressor, the compression
element is a piston, which reciprocates in the cylinder.
2. Features
Advantages of piston air compressor:
1.Wide range of applicable pressure, regardless of the flow rate,
can reach the required pressure;
2.High thermal efficiency and low power consumption per unit;
3. Strong adaptability, that is, the exhaust range is wide, and it
is not affected by the pressure level, and can adapt to a wider
pressure range and cooling capacity requirements;
4, strong maintainability;
5. The material requirements are low, and ordinary steel materials
are used more easily, and the cost is relatively low;
6. It is technically mature and has accumulated rich experience in
production and use;
7. The device system is relatively simple;
3. Working principle
The compressor is directly driven by the motor, which causes the
crankshaft to rotate, and the connecting rod causes the piston to
reciprocate, causing the cylinder volume to change. Due to the
pressure change in the cylinder, the air is passed through the air
cleaner (muffler) into the cylinder through the intake valve.
During the compression stroke, due to the reduction of the volume
of the cylinder, the compressed air passes through the exhaust
valve and passes through the exhaust pipe. The check valve (check
valve) enters the gas storage tank, and when the exhaust pressure
reaches the rated pressure, it is controlled by a pressure switch
to automatically stop. When the pressure of the gas storage tank
drops to 0.5--0.6MPa, the pressure switch is automatically
connected and started.
The air compressor is to provide air source power and is the core
equipment of the pneumatic system. The main body of the
electromechanical air induction device is a device that converts
the mechanical energy of the prime mover (usually an electric motor
or a diesel engine) into gas pressure energy. Air pressure
generating device.
Product Details and Warranty
We supply suitable spare pats according to experiment requirement,
our products take aluminum structure, A4 paper dimension aluminum
and plastic hanging box structure.
We supply 3 years warranty time.
Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with
pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
Training Room Photo
Company Information
We supply professional educational training equipment and technical
teaching equipment, which has been widely applied in Engineering
Universities, Polytechnics, Technical Institute, Vocational Schools
as well as Industry workforce Development Programs and Training
Center. Our products allow students to learn and experiment through
valuable hands-on experience, and the technology covered by our
training equipment provides knowledge, experiments and didactic
skills development that are of critical importance to today´s and
tomorrow´s careers.
Photo for Clients Visiting Factory
Service
We supply supply7*24 hours service, customer design service, OEM
service, buyer label service. With professional engineers team and
sales team, we assure you good product quality.
Certificate
Our products takes ISO9001 product management system.
| No. | Feature Name | Details |
| 1 | Customer design | Yes |
| 2 | Warranty | 1 year, 2 years, 3 years or 5 years according to client
requirements |
| 3 | Package | Plastic film+ carton+ Fine plywood |
| 4 | Products standard | International didactic equipment standard |
| 5 | Application range | Educational equipment for university, college, vocational training
centers |
| 6 | Company philosophy | Supply best quality Chinese products to the worldwide schools. |
| 7 | Self owned brand | Shouldshine, SSEDU, JSS. |
| 8 | Production time | From 10 days to 60 days according to different items |
