ZE4156 Industrial Electricity Training Equipment Didactic Equipment
Teaching Equipment Vocational Training Equipment
I Technical data
1 Input power: AC380V±5%(three-phase five-wire) 50±1Hz
2 Rating current: 5A
3 Environment temperature: -5℃～40℃ RH: ＜75% (25℃)
4 External dimension: 750×550×1800mm
5 Weight: 220kg
II Functional Features

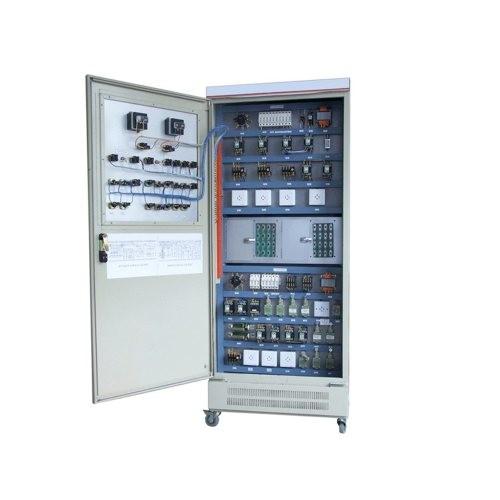

The trainer is designed as per standard electrical control cabinet
(specification: 750×550×1800mm), it fully uses two-sided space, and
it is equipped with timer and alarm apparatus inside of the
cabinet. It has current mode and voltage mode earth leakage
protection device, and overcurrent protection device.
It is equipped with voltmeter, ammeter, rotary switch, control
button, all kinds of indicator lights, various experimental motors
(it has special motor cabinet) inside of the cabinet door, and it
is equipped with all kinds of industrial electrical circuit and
attached with circuit diagram in the cabinet.
The arranged electrical circuit in cabinet is beautiful,
orderliness, standard, and scientific, the electrical components
all adopt high quality and famous brand, which ensure the quality
and technical data requirement. Setting and removal point of
man-made fault is control by switch.
It adopts separating way of fault setting board and fault removal
board, it is easy to operate, only need to turn the switch when
setting or removing malfunction, it is convenient for teacher and
examiner to conduct training check.
III Configuration
1 AC contactor: 5 pieces
2 Relay: 5 pieces
3 Single phase transformer: 1 piece
4 Thermorelay: 2 pieces
5 Time relay: 1 piece
6 Indicator light 5 pieces, button 5 pieces, emergency stop 1 piece
7 Three phase asynchronous motor (double speed Y-Δ): 2 pieces
8 English user manual
Product Details and Warranty
We supply suitable spare pats according to experiment requirement,
our products take aluminum structure, A4 paper dimension aluminum
and plastic hanging box structure.
We supply 3 years warranty time.
Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with
pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
Training Room Photo
Company Information
We supply professional educational training equipment and technical
teaching equipment, which has been widely applied in Engineering
Universities, Polytechnics, Technical Institute, Vocational Schools
as well as Industry workforce Development Programs and Training
Center. Our products allow students to learn and experiment through
valuable hands-on experience, and the technology covered by our
training equipment provides knowledge, experiments and didactic
skills development that are of critical importance to today´s and
tomorrow´s careers.
Photo for Clients Visiting Factory
Service
We supply supply7*24 hours service, customer design service, OEM
service, buyer label service. With professional engineers team and
sales team, we assure you good product quality.
Certificate
Our products takes ISO9001 product management system.
| No. | Feature Name | Details |
| 1 | Customer design | Yes |
| 2 | Warranty | 1 year, 2 years, 3 years or 5 years according to client
requirements |
| 3 | Package | Plastic film+ carton+ Fine plywood |
| 4 | Products standard | International didactic equipment standard |
| 5 | Application range | Educational equipment for university, college, vocational training
centers |
| 6 | Company philosophy | Supply best quality Chinese products to the worldwide schools. |
| 7 | Self owned brand | Shouldshine, SSEDU, JSS. |
| 8 | Production time | From 10 days to 60 days according to different items |
