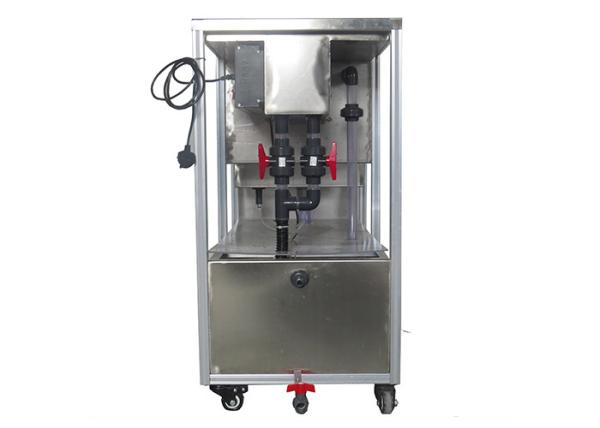

ZM2108 Educational Equipment Technical Teaching Equipment Hydraulics Bench

• I- structural specifications:

• Stainless structure.
• Screws, nuts, plates and all the metallic elements in stainless steel.
• Diagram in the front panel with similar distribution to the elements in the real unit.
• Quick connections for adaptation to feed hydraulics source.
•


  II- technical data:

• Mobile hydraulic bench and mounted on wheels for mobility.
• Centrifugal pump, 0.37 KW, 30-80 l/min at 20.1-12.8 m., single phase 220V./50Hz or 110V./60Hz.
• Runner made in stainless steel.

• III- manuals:

  This unit should be supplied with the following manuals:

• Required services manual.
• Assembly and installation manual.
• Starting-up manual.
• Safety manual.
• Maintenance manual.
• Calibration manual (if it is necessary).
• Practices manual.

• D- practices:

  This unit should be designed to be able to do the following practices:

• Flow measurement.
• Sump tank capacity: 165 L.
• Small channel: 8 L.
• Flow measurement: volumetric tank, gauged from 0 to 7 L. for low flow values and from 0 to 40 L. for high flow values.
• Control valve for regulating the flow.
• Open channel to place the test module.
• Measuring cylinder is provided for the measurement of small flow rates.
• Remote hand-operating dump valve in the base of the volumetric tank.
• Rapidity and ease for interchanging of the different modules.
• Dimensions: 1130 x 730 x 1000 mm. approx. Weight: 70 Kg. approx.

Product Details and Warranty

We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.

We supply 3 years warranty time.

Packaging & Delivery

Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.
