ZT0020 Heat Transfer in a Tubular Heat Exchanger Didactic Equipment
Thermal Teaching Equipment
I. Product content
1 Product overview
1.1 Overview

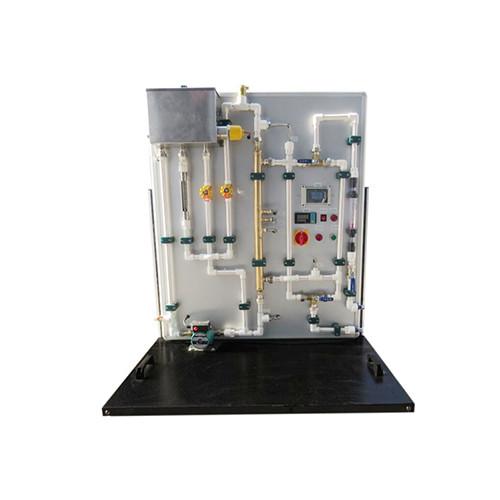

The ZT0020 tube heat transfer test bench is a training and teaching
device used in the laboratory to study the heat conduction between
fluids in the pipeline flow process. The core part of the test
bench is a sleeve. When flowing in the pipe, the hot water
transfers part of the heat energy to the cold water when it is
flowing. The flow direction of the water can be adjusted to study
the heat transfer process of different arrangements such as forward
and reverse flow. Temperature sensors are arranged in the middle of
the inlet and outlet and the pipe wall to measure the water
temperature and wall temperature. The hot water circuit includes a
water tank with an electric heater and a water pump, and the flow
of cold and hot water can be adjusted through a valve.
1.2 Features
The flow direction of the water in the ZT 0020 test bench loop
cycle is adjustable, which is used to test different heat exchange
processes such as downstream and countercurrent;
The circulating water temperature and circulating water flow rate
in the loop can be smoothly adjusted;
Transient data during the change of the workbench is directly
displayed on the display in digital form;
The data of various physical quantities in the changing process of
the workbench can also be transmitted to the PC through the USB
interface for further processing;
Product Details and Warranty
We supply suitable spare pats according to experiment requirement,
our products take aluminum structure, A4 paper dimension aluminum
and plastic hanging box structure.
We supply 3 years warranty time.
Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with
pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
Training Room Photo
Company Information
We supply professional educational training equipment and technical
teaching equipment, which has been widely applied in Engineering
Universities, Polytechnics, Technical Institute, Vocational Schools
as well as Industry workforce Development Programs and Training
Center. Our products allow students to learn and experiment through
valuable hands-on experience, and the technology covered by our
training equipment provides knowledge, experiments and didactic
skills development that are of critical importance to today´s and
tomorrow´s careers.
Photo for Clients Visiting Factory
Service
We supply supply7*24 hours service, customer design service, OEM
service, buyer label service. With professional engineers team and
sales team, we assure you good product quality.
Certificate
Our products takes ISO9001 product management system.
| No. | Feature Name | Details |
| 1 | Customer design | Yes |
| 2 | Warranty | 1 year, 2 years, 3 years or 5 years according to client
requirements |
| 3 | Package | Plastic film+ carton+ Fine plywood |
| 4 | Products standard | International didactic equipment standard |
| 5 | Application range | Educational equipment for university, college, vocational training
centers |
| 6 | Company philosophy | Supply best quality Chinese products to the worldwide schools. |
| 7 | Self owned brand | Shouldshine, SSEDU, JSS. |
| 8 | Production time | From 10 days to 60 days according to different items
|
