SR362 Comparison Of Pumps Teaching Equipment Hydrodynamics Laboratory
equipment
1. Description

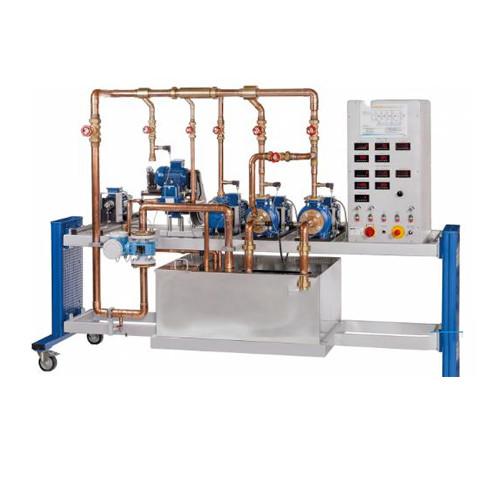

The experiments familiarise students with various pump types, such
as centrifugal and positive displacement pumps.
The trainer includes two centrifugal pumps, one piston pump as a
positive displacement pump and a self-priming side-channel pump.
The side-channel pump works primary as a centrifugal pump and,
depending on liquid level, can also act as a Positive displacement
pump. This means, as a special feature, the side-channel pump also
permits gases to be pumped.
The pump is investigated pumps water in a closed circuit. In the
process, the performance data of the pump and pressure losses in
the pipeline are recorded. The centrifugal pumps can also be
operated in parallel or in series configuration. Each pump is
driven by a All of the motors of the centrifugal pumps is variably
adjustable by a frequency converter. All motors are mounted on
swivel bearings, so the torque can be measured by way of a force
sensor, enabling the mechanical drive power Output to be
determined.
One free position is followed equipped with a reversible
three-phase AC motor with variable speed. This position can be used
for mounting of any pump.
Experiments demonstrate the basic operating lessons of various pump
types.
2. Technical details
Specification
Experiments relating to key issues in pump engineering
Comparison of various pump types: centrifugal pump, piston pump,
side-channel pump
Operation of centrifugal pumps in parallel or series configuration
Free position for additional pump
Three-phase AC motors for centrifugal pumps and additional motor
with variable speed by frequency converter
Technical data
Centrifugal pump 2x
Max. flow rate (Q): 300L/min
Max. head (H): 16,9m
Nominal speed: 2900min-1
Three-phase AC motor 2x, for centrifugal pump
Power output: 1,1kW
Side-channel pump, self-priming, one-stage
Q: 83, 3L/min, H: 50m
Nominal speed: 1450min-1
Three-phase AC motor for side-channel pump
Power output: 1,1kW
Piston pump
Q: 17L/min, H: 60m
Nominal speed: 405min-1
Three-phase AC motor for piston pump
Power output: 0,55kW
Three-phase AC motor, additional motor, reversible
Power output: 0,75kW
Speed range: 750...3000min-1
Measuring ranges
Flow rate: 0...500L/min
Pressure (inlet): -1...1,5bar
Pressure (outlet): 0...10bar
Torque: 0...15Nm
Speed: 0...3000min -1
Pump electrical power consumption: 0...2kW
400V, 50Hz, 3 phases
400V, 60Hz, 3 phases
230V, 60Hz, 3 phases
Product Details and Warranty
We supply suitable spare pats according to experiment requirement,
our products take aluminum structure, A4 paper dimension aluminum
and plastic hanging box structure.
We supply 3 years warranty time.
Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with
pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
