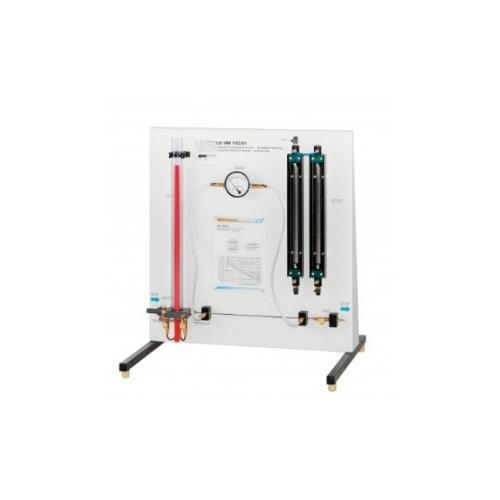

ZM7320 Laminar Turbulent Pipe Flow Apparatus Educational Equipment
Hydrodynamics Experiment Apparatus
. Description
. During flow through pipes, pressure losses occur due to internal
friction and friction between the fluid and the wall. When
calculating pressure losses, we need to know the friction factor, a
dimensionless number. The friction factor is determined with the
aid of the Reynolds number, which describes the ratio of inertia
forces to friction forces.
.ZM7320 enables the study of the relationship between pressure loss
due to fluid friction and velocity in the pipe flow. Additionally,
the pipe friction factor is determined.
. The experimental unit includes a small diameter pipe section in
which the laminar and turbulent flow is generated. The Reynolds
number and the pipe friction factor are determined from the flow
rate and pressure loss. In turbulent flow, the pipe is supplied
directly from the water supply. The constant pressure at the water
supply required for laminar flow is provided by a standpipe on the
overflow. Valves can be used to adjust the flow rate.
. The pressures in laminar flow are measured with twin tube
manometers. In turbulent flow, the pressure is read on a dial-gauge
manometer.
. The experimental unit is positioned easily and securely on the
work surface of the HM 150 base module. The water is supplied and
the flow rate measured . Alternatively, the experimental unit can
be operated by the laboratory supply.
. Specification
. investigation of the pipe friction in laminar or turbulent flow
. transparent tank with overflow ensures constant water inlet
pressure in the pipe section for experiments with laminar flow
. flow rate adjustment via valves
. twin tube manometers for measurements in laminar flow
. dial-gauge manometer for measurements in turbulent flow
. flow rate determined base module
. water supply using base module or via laboratory supply
. Technical data
. Pipe section
. length: 400mm
. Ø, inner: 3mm
. Tank: approx. 2L
.
Measuring ranges
. differential pressure:
. 2x 370mmWC
. 1x 0…0,25bar
. Dimensions and weight
LxWxH: 850x680x930mm
Weight: approx. 23kg
