ZM9112 Impact of a Jet Apparatus Vocational Training Equipment
Hydrodynamics Experiment Apparatus
Description
To understand correctly how a turbine (a Pelton wheel for example)
works, students need to understand how jet deflection produces a
force on turbine vanes. They also need to know how this force
influences the rate of momentum flow in the jet. This product shows
students the force produced by a jet of water as it strikes a flat
plate or hemispherical cup. They can then compare this to the
momentum flow rate in the jet. To extend the range of
investigations, the 120-Degree Conical Plate and 30-Degree Angled
Plate are available separately. Our hydraulic bench provides the

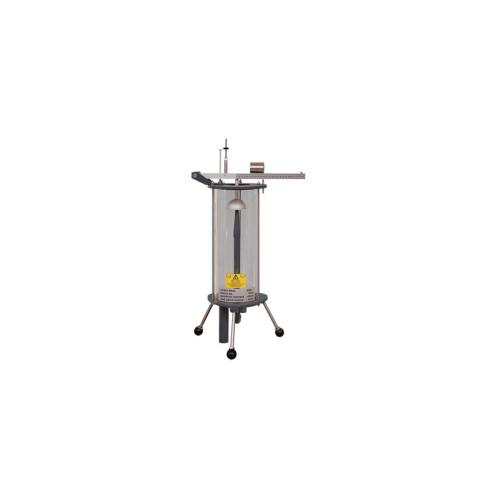

water source for experiments. The Impact of a Jet consists of a
transparent cylinder containing a vertically tapered nozzle and a
test plate. The cylinder is on legs and mounts on the top of the
hydraulic bench. The nozzle, supplied by the hydraulic bench,
produces a high-velocity jet of water which hits the test plate.
The test plate connects to a weigh beam assembly with jockey weight
which measures the jet force. A drain tube in the base of the
cylinder directs water back into the hydraulic bench, allowing
accurate flow rate measurement. All test plates are all easily
interchangeable, taking only a few seconds and needing no tools. To
perform experiments, students level the apparatus and zero the
weigh beam assembly. They set the flow from the hydraulic bench to
maximum, and measure the jet force. They reduce the flow from the
hydraulic bench in several increments. At each increment they
record the force of the jet on the plate and the flow rate. They
then repeat the experiments for different test plates. Students
compare their experimental results to those calculated from theory,
working out charts of rate of force on plate and rate of delivery
of momentum.
Product Details and Warranty
We supply suitable spare pats according to experiment requirement,
our products take aluminum structure, A4 paper dimension aluminum
and plastic hanging box structure.
We supply 3 years warranty time.
Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with
pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
Training Room Photo
Company Information
We supply professional educational training equipment and technical
teaching equipment, which has been widely applied in Engineering
Universities, Polytechnics, Technical Institute, Vocational Schools
as well as Industry workforce Development Programs and Training
Center. Our products allow students to learn and experiment through
valuable hands-on experience, and the technology covered by our
training equipment provides knowledge, experiments and didactic
skills development that are of critical importance to today´s and
tomorrow´s careers.
Photo for Clients Visiting Factory
Service
We supply supply7*24 hours service, customer design service, OEM
service, buyer label service. With professional engineers team and
sales team, we assure you good product quality.
Certificate
Our products takes ISO9001 product management system.
| No. | Feature Name | Details |
| 1 | Customer design | Yes |
| 2 | Warranty | 1 year, 2 years, 3 years or 5 years according to client
requirements |
| 3 | Package | Plastic film+ carton+ Fine plywood |
| 4 | Products standard | International didactic equipment standard |
| 5 | Application range | Educational equipment for university, college, vocational training
centers |
| 6 | Company philosophy | Supply best quality Chinese products to the worldwide schools. |
| 7 | Self owned brand | Shouldshine, SSEDU, JSS. |
| 8 | Production time | From 10 days to 60 days according to different items
|
