ZM9110 Discharge Over a Notch Teaching Equipment Fluids Engineering
Training Equipment
The Discharge over a Notch apparatus shows clearly the use of weirs
as simple flow regulators. It works with and fits on the top of
Digital Hydraulic Bench.
It allows students to do tests on relationships between upstream
water level and weir discharge for various different shaped
notches. They can then compare their results with theory.

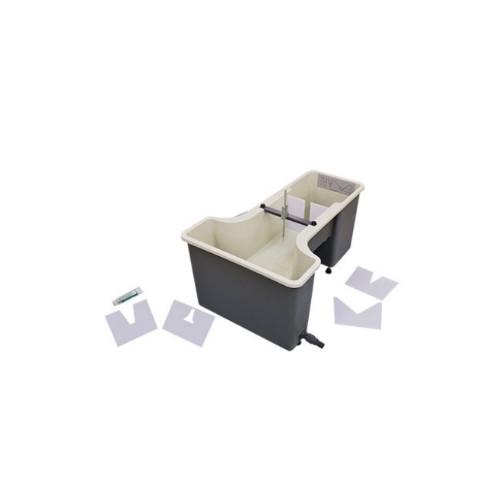

The equipment is a moulded tank, the middle section of which forms
a channel. One end of the tank is wide; the other end is deeper
than the rest of the tank. Each weir fits in a sealed groove in the
channel section. Plastic materials and corrosion-resistant finishes
protect against corrosion. The hydraulic bench supplies water to
the wide end of the tank. Water flows through the channel and over
the weir, where the deep tank exit allows students to see the
discharge. Students measure the free water surface using an
adjustable depth gauge attached to a beam across the channel. The
tank outlet fits on the hydraulic bench (available separately).
The equipment includes two different V-notch weirs and a
rectangular notch weir. To do experiments, students regulate the
flow using the hydraulic bench. They note the value of discharge
and head, and reduce the flow. They repeat the readings for equal
decrements in head, until the stream no longer springs clear of the
notch. From their results they plot graphs of discharge rate
against head, and also the logs of each.
Product Details and Warranty
We supply suitable spare pats according to experiment requirement,
our products take aluminum structure, A4 paper dimension aluminum
and plastic hanging box structure.
We supply 3 years warranty time.
Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with
pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
Training Room Photo
Company Information
We supply professional educational training equipment and technical
teaching equipment, which has been widely applied in Engineering
Universities, Polytechnics, Technical Institute, Vocational Schools
as well as Industry workforce Development Programs and Training
Center. Our products allow students to learn and experiment through
valuable hands-on experience, and the technology covered by our
training equipment provides knowledge, experiments and didactic
skills development that are of critical importance to today´s and
tomorrow´s careers.
Photo for Clients Visiting Factory
Service
We supply supply7*24 hours service, customer design service, OEM
service, buyer label service. With professional engineers team and
sales team, we assure you good product quality.
Certificate
Our products takes ISO9001 product management system.
| No. | Feature Name | Details |
| 1 | Customer design | Yes |
| 2 | Warranty | 1 year, 2 years, 3 years or 5 years according to client
requirements |
| 3 | Package | Plastic film+ carton+ Fine plywood |
| 4 | Products standard | International didactic equipment standard |
| 5 | Application range | Educational equipment for university, college, vocational training
centers |
| 6 | Company philosophy | Supply best quality Chinese products to the worldwide schools. |
| 7 | Self owned brand | Shouldshine, SSEDU, JSS. |
| 8 | Production time | From 10 days to 60 days according to different items
|
