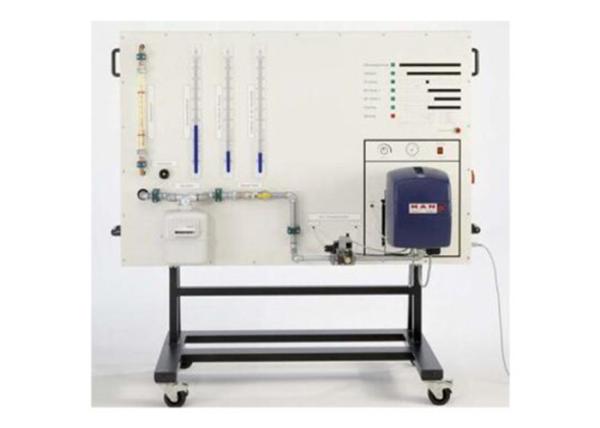

SR3012 Forces air gas burner training panel Thermal Lab Equipment Educational Equipment

1. Overview

Brand: ShouldShine

Model:SR3012

2. Learning Objectives / Experiments

- familiarisation with components for heating systems

- starting a gas burner

- nominal load adjustment on a gas burner

- fault-finding and fixing

- calculation of the gas flow rate / operating volume

3. Specification

[1] simulation of the operation of a gas burner

[2] hazard-free operation of the burner with air

[3] diaphragm pump for pressure generation, pumping medium: air

[4] display of the most important operating pressures on single tube manometers

[5] indication of burner operation using a flickering light

[6] monitoring of burner operation using flame safeguard

4. Technical Data

Gas burner - rating class: 13...28kW

Gas pressure controller - admission pressure: 0,4bar - outlet pressure: 0,04bar

Diaphragm pump - power consumption: 70W - max. flow rate: 70L/min at 230mbar

Measuring ranges - flow rate air: 0,5...5,5m³/h - pressure: 3x 0...50mbar

Dimensions and Weight LxWxH: 1650x700x1850mm Weight: approx. 115kg

Required for Operation

230V, 50/60Hz, 1 phase or 120V, 60Hz, 1 phase

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.
