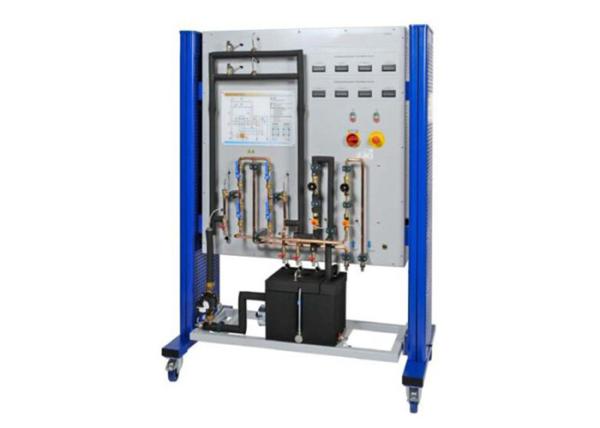

SR-WL302 Trainer Tubular Heat Exchanger Thermal Lab Equipment
Vocational Training Equipment
1. Technical Description
Using the trainer, the characteristic properties of heat transfer
in pipe flows can be demonstrated. The heat transfer takes place in
a coaxial tubular heat exchanger. The hot water is fed through the
inner tube.
Using the trainer both parallel flow and counterflow operation with
their different temperature profiles can be demonstrated. The
non-linear temperature profile along a heat exchanger can be
demonstrated by measuring temperatures at the inlet, outlet and
halfway along the pipe. After the experiment the key parameters
such as heat flux, heat transfer coefficient and heat loss are
determined.
The closed hot water circuit includes a tank with electrical heater
and a pump. The hot water temperature is kept constant using a
thermostat. The cold water is drawn from the water mains and is fed
to a drain after use.
The flow rate and relevant temperatures are recorded by sensors. A
display panel for the measured values is located on the instrument
panel next to the copper pipework.
2. Learning Objectives / Experiments
- plotting temperature curves
* in parallel flow operation
* in counterflow operation
- determination of mean heat flux for parallel flow and counterflow
operation
- determination of mean heat transfer coefficient
3. Specification
[1] trainer with a tubular heat exchanger
[2] closed hot water circuit, insulated with pump and heater with
thermostat
[3] copper piping
[4] all valves in the cold water circuit to select the operation
mode parallel flow or counterflow
[5] temperature measurement with 6 sensors
[6] flow rate measurement with sensor
