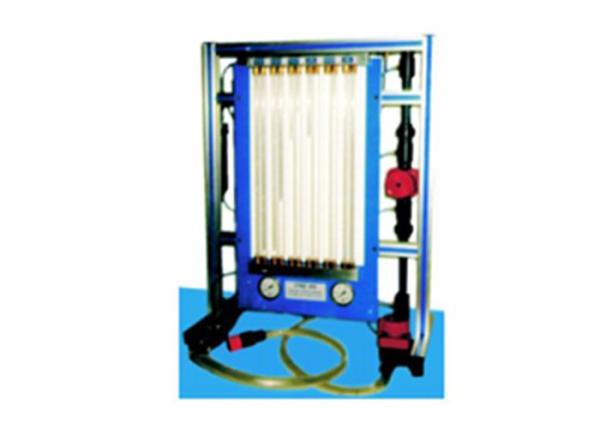

ZM7101 Energy Losses in Bends Fluid Mechanics Lab Equipment Educational Equipment
1. Technical data
1. A- STRUCTURAL SPECIFICATIONS:
2. Stainless structure.
3. Screws, nuts, plates and all the metallic elements in stainless
steel.
4. Diagram in the front panel with similar distribution to the
elements in the real unit.
5. Quick connections for adaptation to feed hydraulics source.
B- TECHNICAL DATA:
6. Range of the two Bourdon type manometers: 0 to 2.5 bar.
7. Differential manometers range: 0 to 500 mm.
8. Number of manometric tubes: 12.
9. PVC Rigid pipes:
10. Internal diameter: 25 mm.
11. External diameter: 32 mm.
12. Flexible pipes:
13. Pressure taking-differential manometer. External diameter: 10
mm.
14. Pressurizing equipment. External diameter: 6 mm.
15. Drain. External diameter: 25 mm.
16. Fittings:
17. Miter (90 º angles).
18. 90º curve.
19. 90º medium elbow.
20. 90º short elbow.
21. 90º long elbow.
22. Broadening of 25/40.
23. Narrowing of 40/25.
24. Valves:
25. Membrane valves. Diameter: 25 mm.
26. Antireturn: 6 mm.
27. Easy and quick coupling system built-in.
28. Anodized aluminium structure and panel in painted steel.
29. Dimensions: 750 x 550 x 950 mm. approx. Weight: 10 Kg. approx.
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
