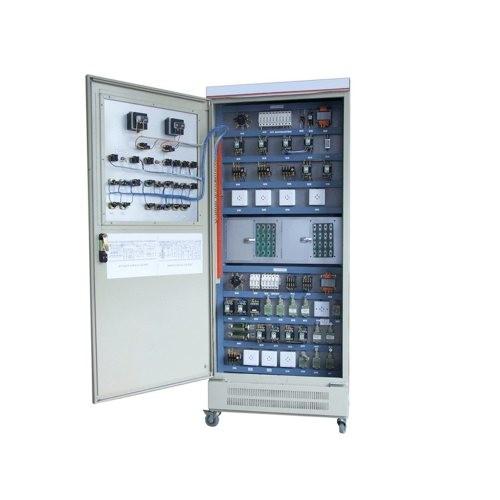

ZE4156 Electrical Training Equipment / Power Electronics Kit With
Special Motor
I Technical data
1 Input power: AC380V±5%(three-phase five-wire) 50±1Hz
2 Rating current: 5A
3 Environment temperature: -5℃～40℃ RH: ＜75% (25℃)
4 External dimension: 750×550×1800mm
5 Weight: 220kg
II Functional Features
The trainer is designed as per standard electrical control cabinet
(specification: 750×550×1800mm), it fully uses two-sided space, and
it is equipped with timer and alarm apparatus inside of the
cabinet. It has current mode and voltage mode earth leakage
protection device, and overcurrent protection device.
It is equipped with voltmeter, ammeter, rotary switch, control
button, all kinds of indicator lights, various experimental motors
(it has special motor cabinet) inside of the cabinet door, and it
is equipped with all kinds of industrial electrical circuit and
attached with circuit diagram in the cabinet.
The arranged electrical circuit in cabinet is beautiful,
orderliness, standard, and scientific, the electrical components
all adopt high quality and famous brand, which ensure the quality
and technical data requirement. Setting and removal point of
man-made fault is control by switch.
It adopts separating way of fault setting board and fault removal
board, it is easy to operate, only need to turn the switch when
setting or removing malfunction, it is convenient for teacher and
examiner to conduct training check.
III Configuration
1 AC contactor: 5 pieces
2 Relay: 5 pieces
3 Single phase transformer: 1 piece
4 Thermorelay: 2 pieces
5 Time relay: 1 piece
6 Indicator light 5 pieces, button 5 pieces, emergency stop 1 piece
7 Three phase asynchronous motor (double speed Y-Δ): 2 pieces
8 English user manual
Arrange delivery within 45 days upon receipt of payment.
